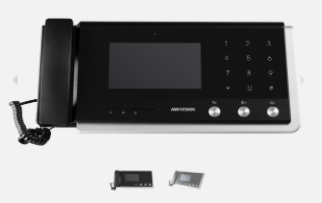

Km8 Series Main Station

IP Master station
CMOS 0.3 MP, 7-Inch Touch Screen, Touch Key, Physical Button
2 RS-485 Half-Duplex Port
2 On-Off Output, 2 Relay Output, 4 On-Off Input, 12 VDC
Unlock door, monitor door station and IP cameras, Receive alarm messages




System Parameters
ProcessadorHigh-Performance Embedded SOC Processor
Operation SystemEmbedded Linux Operation System


Network Parameters
Ethernet10/100/1000 Mbps Self-Adaptive Ethernet
Network ProtocolTCP/IP, RTSP


Device Interfaces
Network Interface1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
Entrada De E/S4 On-Off Input
Saída E/S2 On-Off Output, 2 Relay Output
RS-4852 RS-485 Half-Duplex Port
USB1 USB Interface for Inserting U-Disk


Geral
Fonte De Alimentação12 VDC
Power Consumption≤10 W
Working Temperature-10° C to + 55° C (14° F to 131° F)
Working Humidity10% to 90%
CertificaçãoFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Dimensões (L X P X A)43...
