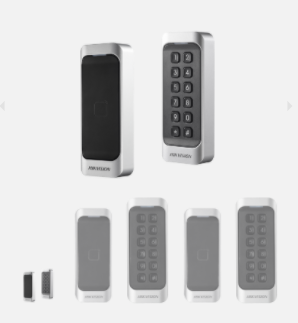

Pro 1107 Series Card Reader

Mifare1/ EM card reader
Built-in audible beeper
RS-485， Wiegand (W26/W34) protocol, and OSDP protocol
IP65




General
Fonte De Alimentação12V DC
Temperatura De Funcionamento-20°C to +65°C (-4°F to 149°F)
Umidade De Funcionamento10% to 90% (Non Condensing)
Reading Range≤50mm (≤1.97")
Communication InterfaceRS485/Wiegand (Set via DIP Switch)
ID Settingsvia DIP Switch
Audio AlertBeeper
Consumo De Energia≤2W
TecladoNo Keypad (DS-K1107E and DS-K1107M)Keypad with 12 Keys (0~9, *, #) (DS-K1107EK and DS-K1107MK)
Indicador De LEDPower Indicator, Status Indicator
Nível De ProteçãoIP65
Tamper-ProofSupports
Dimensions115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)
Installing MethodWall Mounting with Screws; Do Not Support Gang Box


System Parameters
Processador32-bit




*Product performance is based on testing in a controlled environment. Your results may var...
