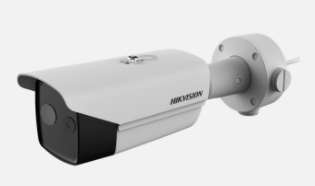

Thermographic Thermal & Optical Bi-Spectrum Network Bullet Camera

High sensitivity thermal module with 384 x 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm
High quality optical module with 2 MP resolution
Bi-spectrum image fusion, picture-in-picture preview




Thermal Module
Sensor De ImagemVOx Uncooled Focal Plane Arrays
Resolução384 × 288
Intervalo De Pixel17 μm
Banda De Onda De Resposta8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.0)
Distância Focal10 mm
Modo De FocoAthermalized
IFOV1.70 mrad
AberturaF1.0
Field Of View37.7°× 28.7° (H × V)
Distância Mín. De Foco1.0 m


Optical Module
Sensor De Imagem1/2.8&...
